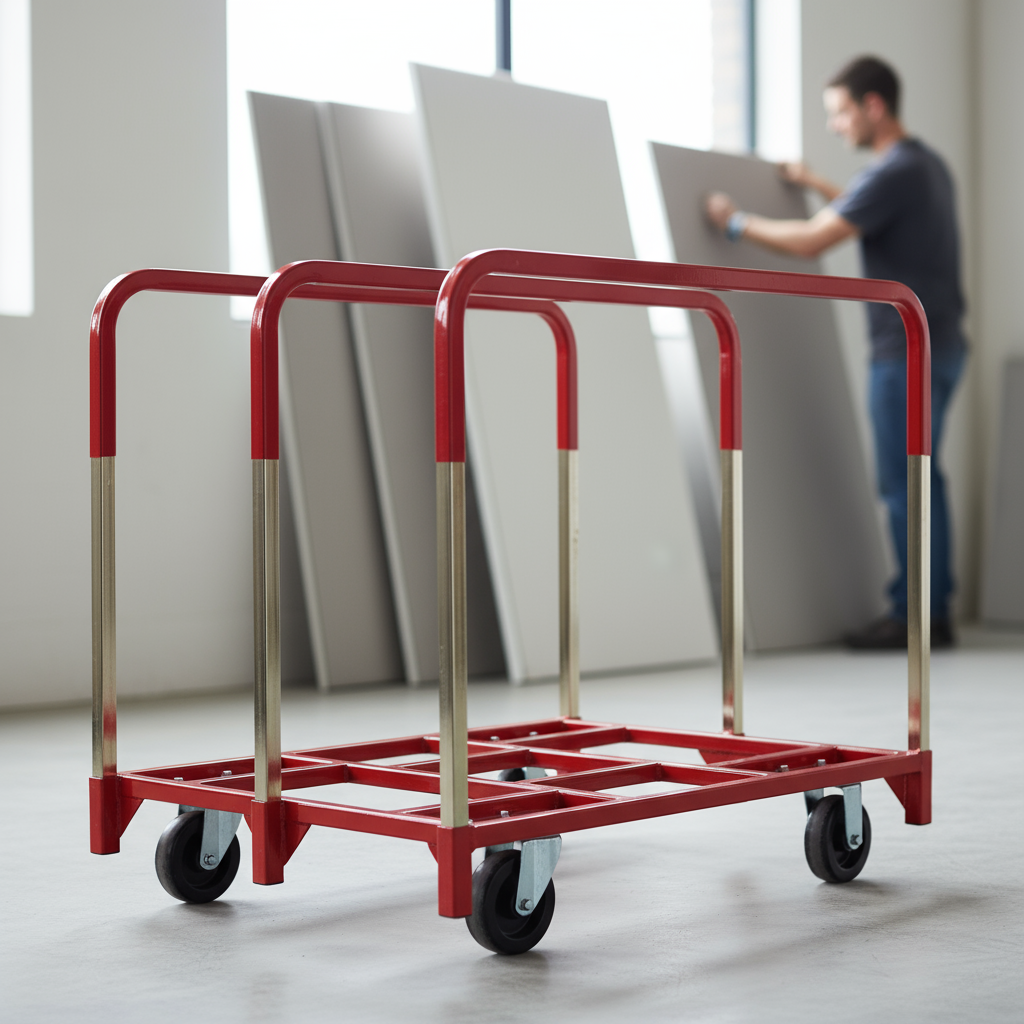

The Panel Mover That Handles 2,400 lbs. of Anything

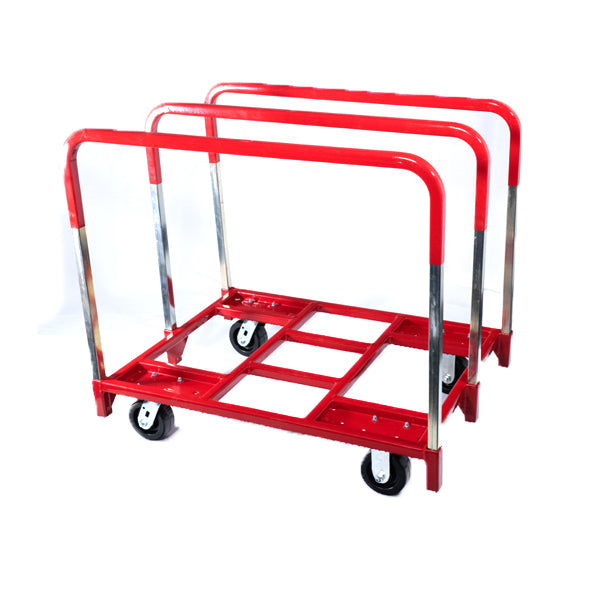

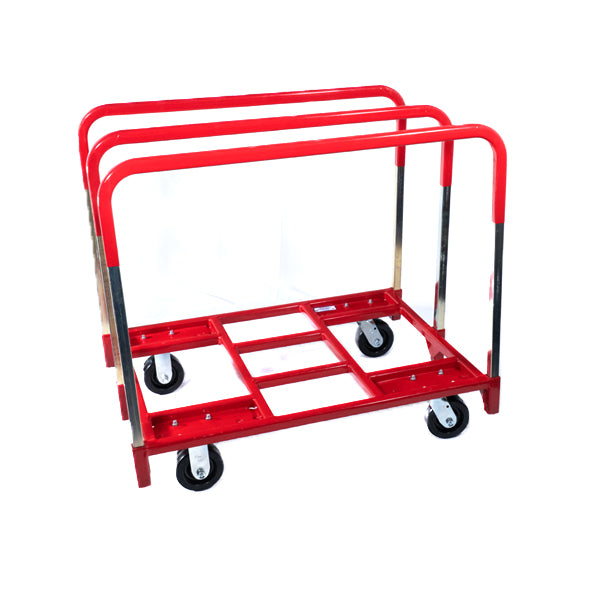

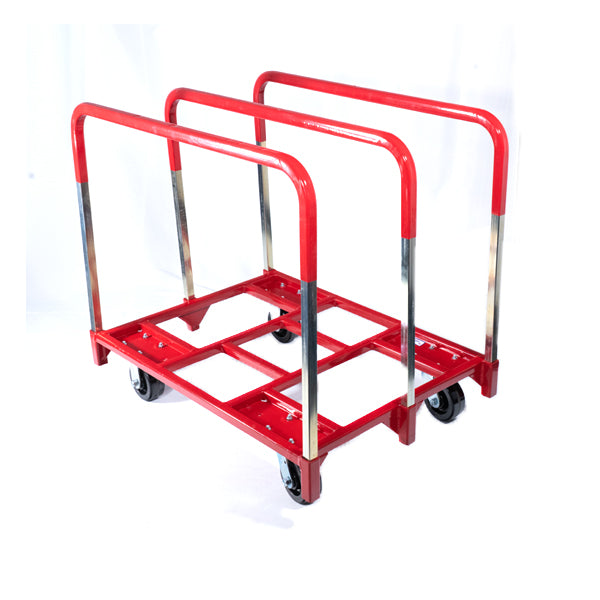

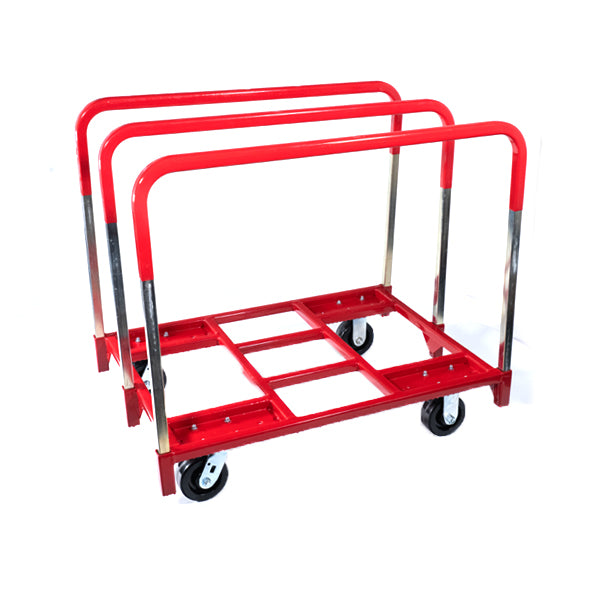

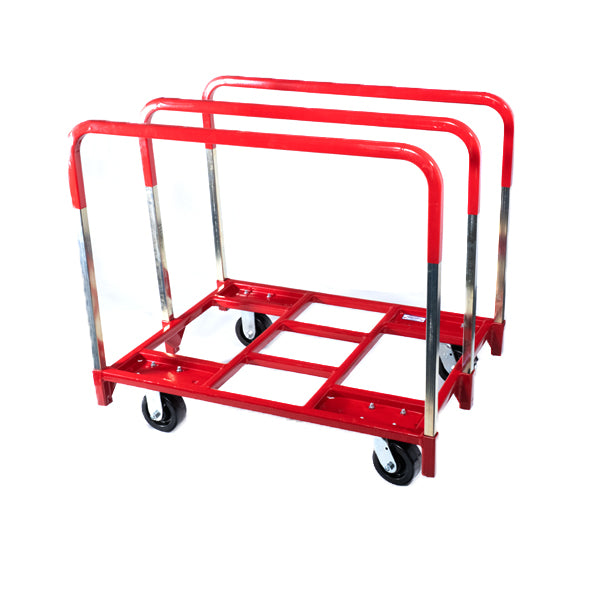

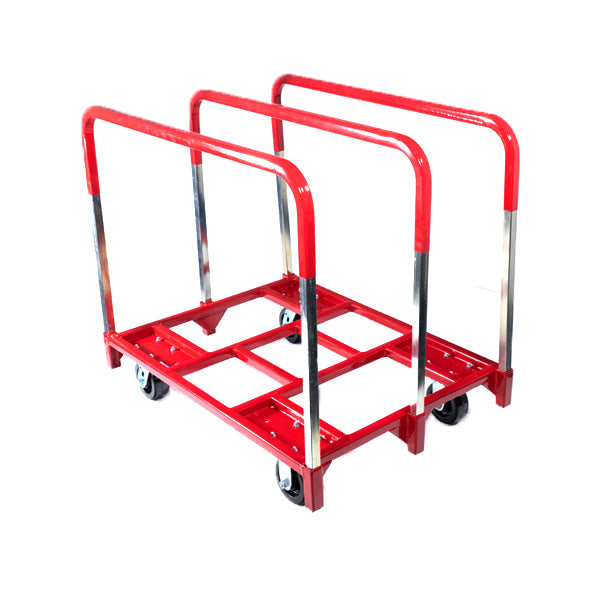

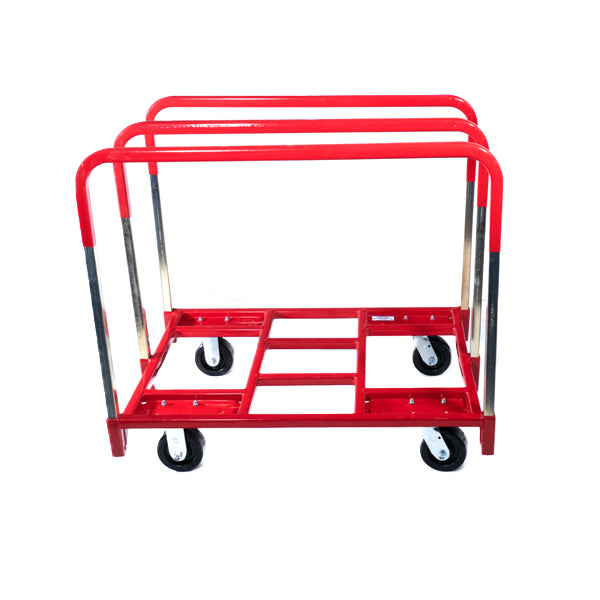

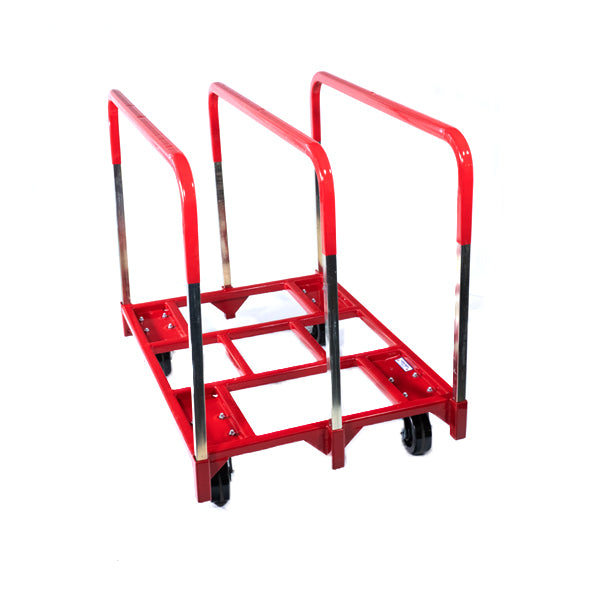

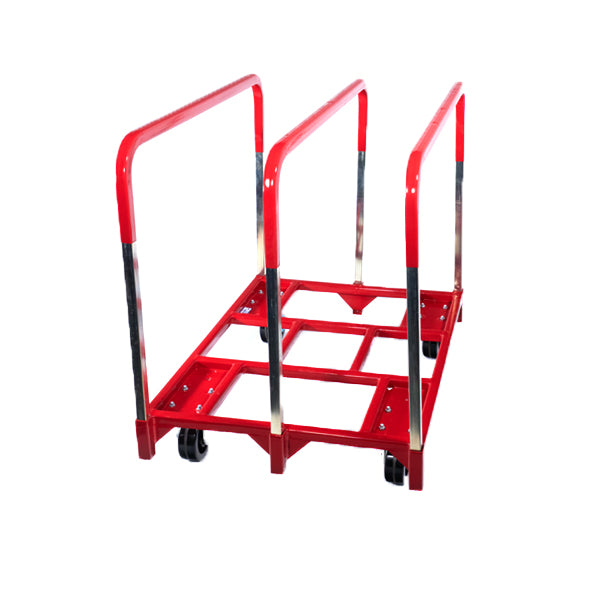

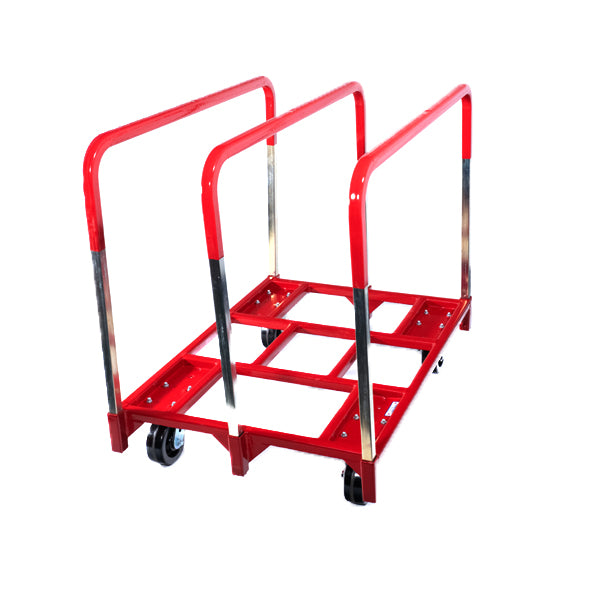

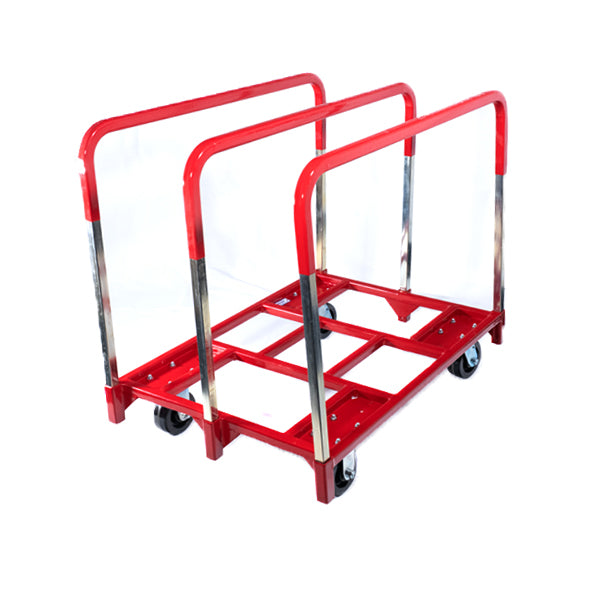

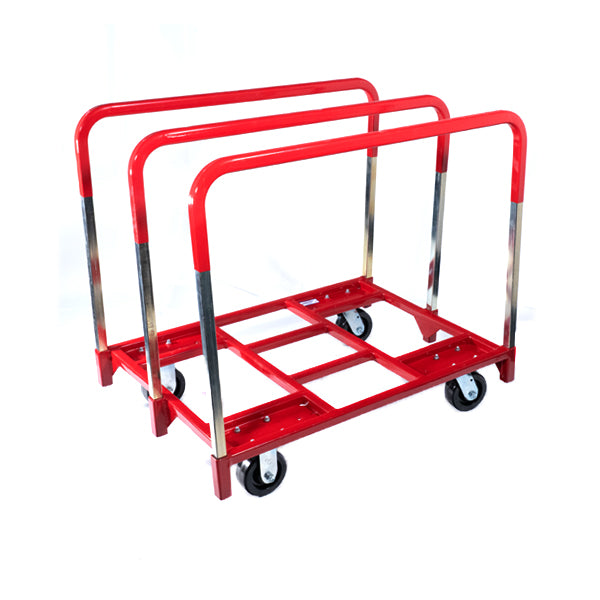

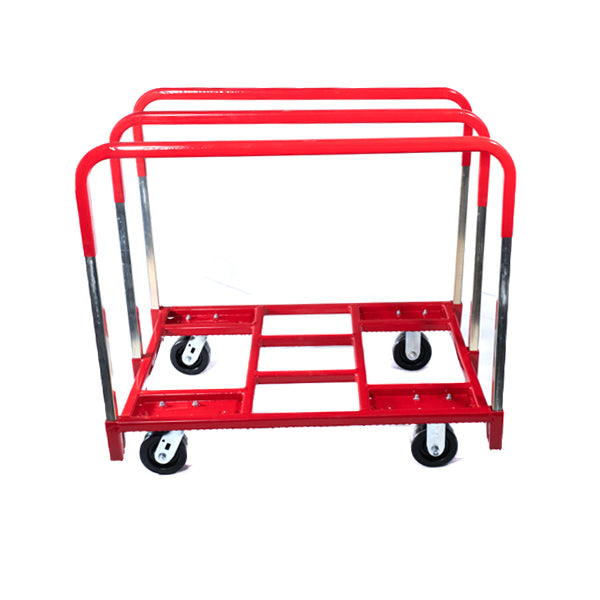

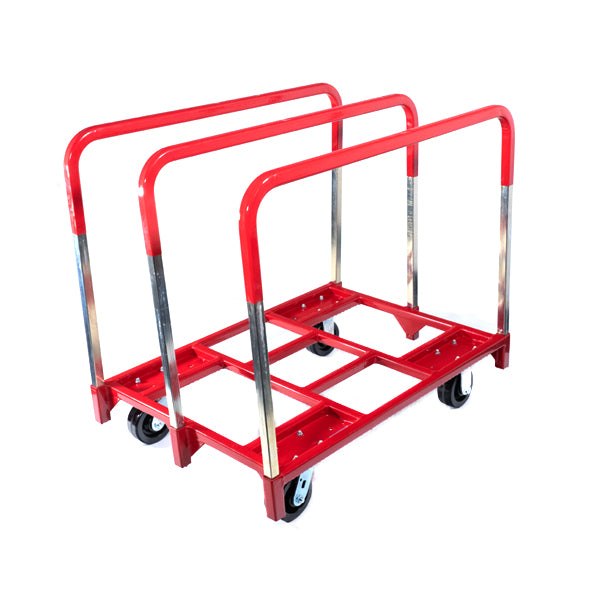

Office partition panels, banquet tables, mattresses, roll goods, bed frames, raw materials between workstations—the Raymond Panel Mover with Standard Uprights handles it all. Built on a robotic-welded 16-gauge tubular steel platform with three removable 26-inch uprights, this American-made workhorse carries up to 2,400 lbs. and rolls on your choice of phenolic or quiet poly casters.
The non-mar, skid-resistant vinyl coating protects both your cargo and your floors. Removable uprights let you configure the mover for flat loads, upright panels, or anything in between. Available with 5-inch, 6-inch, or 8-inch casters in fixed/swivel or all-swivel configurations. Factory direct from Minneapolis.
Key Features
-
2,400 lb. load capacity — Handles the heaviest office panels, tables, and industrial materials
-

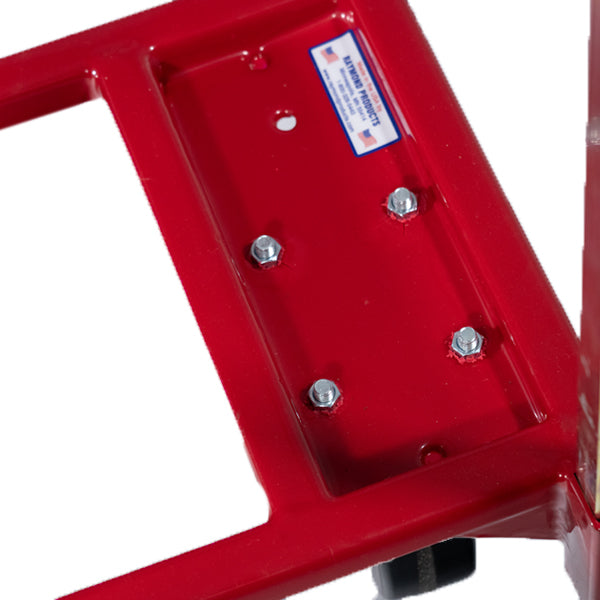

Robotic-welded 16-gauge steel platform — Precision welds for consistent strength across every unit
-

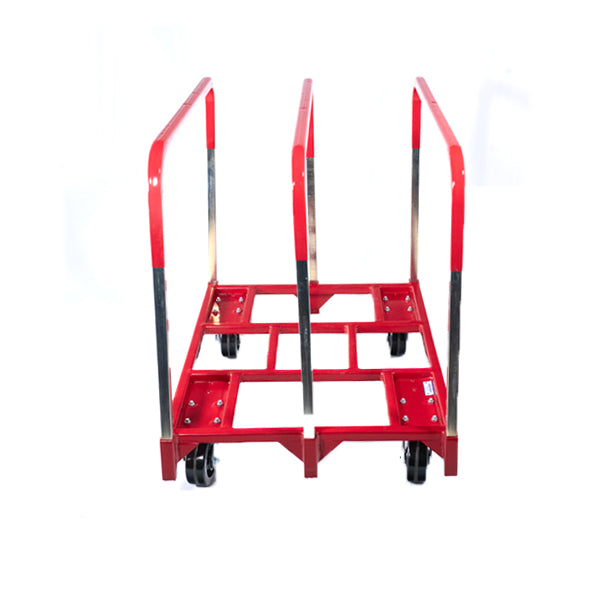

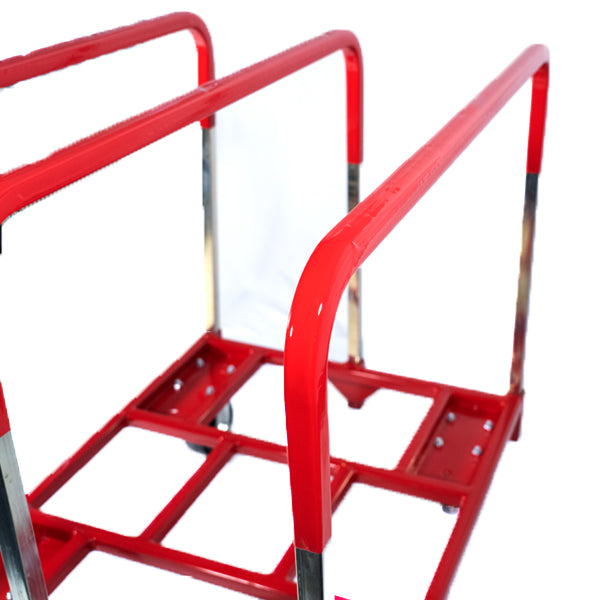

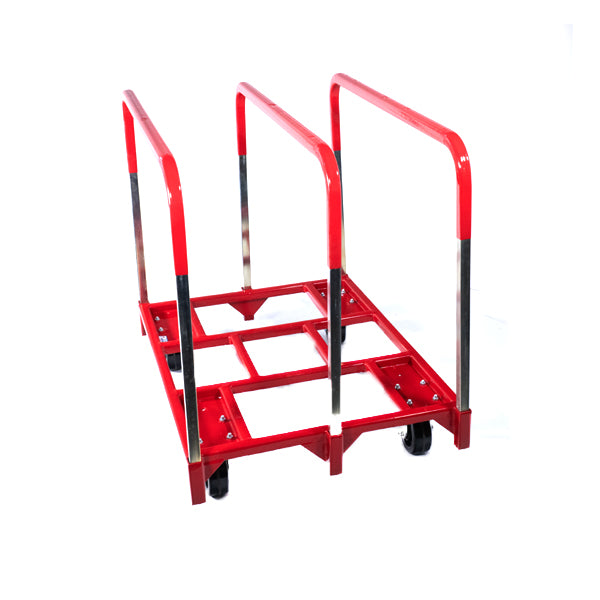

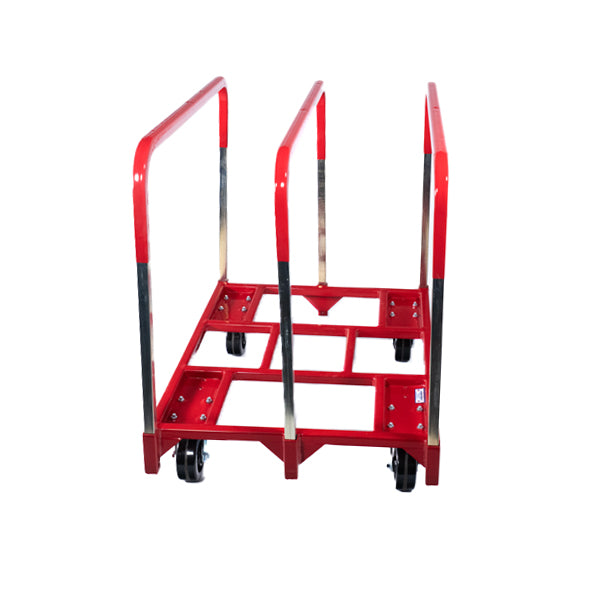

Three removable 26" uprights — 1" x 16-gauge welded steel tubing, spaced 11¾" apart. Remove for flat loads.
-
Non-mar vinyl coating — Skid-resistant finish on platform and uprights protects cargo and floors
-
8 caster configurations — Choose phenolic or quiet poly, 5" to 8", fixed/swivel or all-swivel
-
Optional brake kits — 2-swivel brake kits available for secure positioning
-
Powder-coated steel construction — Built to last decades in demanding commercial environments
Specifications
| Spec |
Detail |
| Load Capacity |
2,400 lbs. |
| Platform Construction |
Robotic-welded 16-gauge tubular steel and steel plate |
| Overall Dimensions |
38½" L x 27½" W x 36⅝" H (height with 8" casters) |
| Load Area |
36" x 25" (usable deck inside the frame) |
| Uprights |
3 removable, 26" above the deck, 1" x 16-gauge welded steel tubing |
| Deck Height |
10⅝" with 8" casters |
| Upright Spacing |
11¾" between sockets |
| Finish |
Non-mar, skid-resistant vinyl coating |
| Caster Options |
5", 6", or 8" — Phenolic or Quiet Poly |
| Caster Config |
2 fixed / 2 swivel, or all swivel |
| Weight Range |
59–75 lbs. (varies by caster) |
| Shipping |
Ground |
| Made In |
Minneapolis, MN — USA |

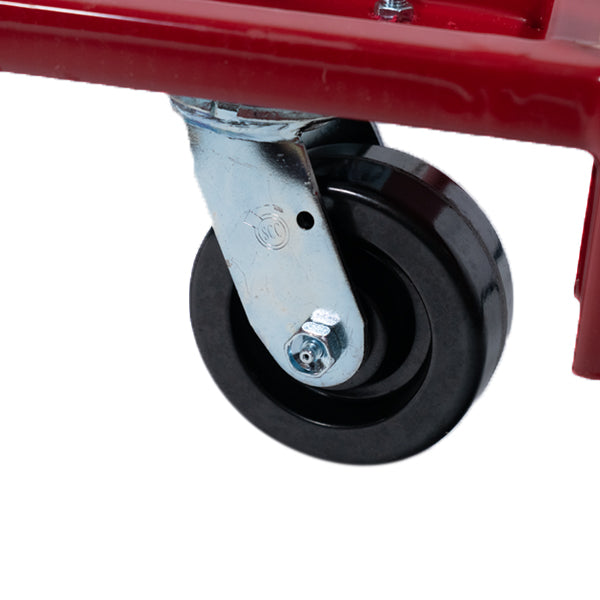

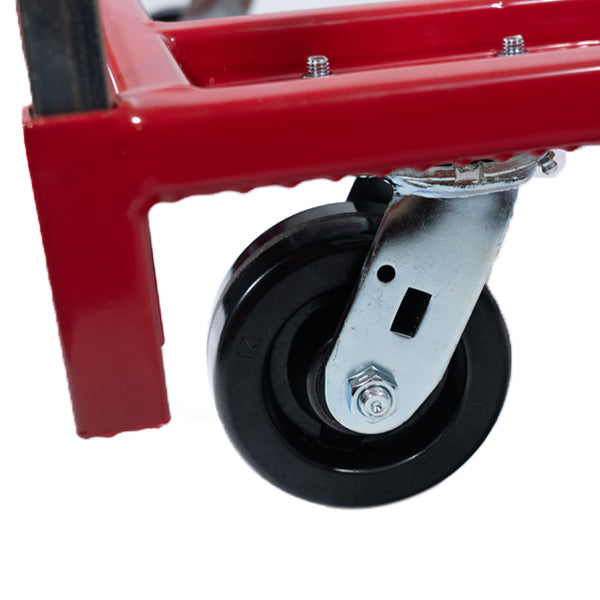

Caster Options
| Model |
Caster Size |
Caster Type |
Configuration |
| 3825 |
5" x 2" |
Phenolic |
2 fixed, 2 swivel |
| 3850 |
5" x 2" |
Phenolic |
All swivel |
| 3851 |
5" x 2" |
Quiet Poly |
2 fixed, 2 swivel |
| 3852 |
5" x 2" |
Quiet Poly |
All swivel |
| 3826 |
6" x 2" |
Phenolic |
2 fixed, 2 swivel |
| 3860 |
6" x 2" |
Phenolic |
All swivel |
| 3828 |
8" x 2" |
Quiet Poly |
2 fixed, 2 swivel |
| 3880 |
8" x 2" |
Quiet Poly |
All swivel |

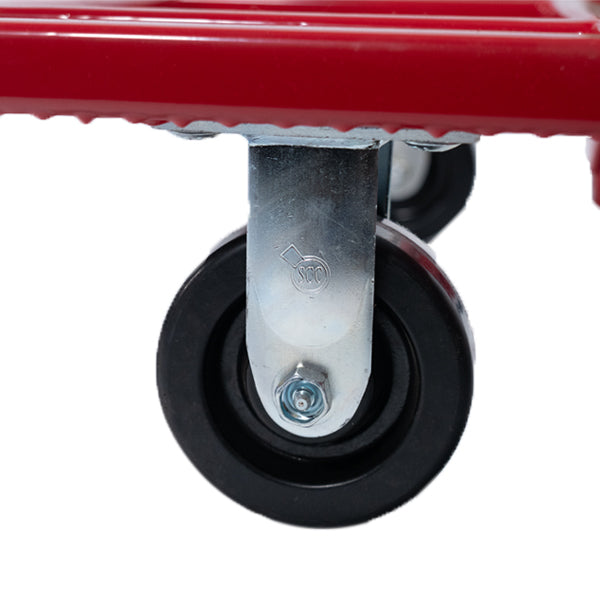

Which casters should you choose? Phenolic casters are ideal for hard, smooth floors. Quiet Poly casters reduce noise and are gentler on polished concrete, tile, and wood floors. All-swivel configurations offer maximum maneuverability in tight spaces. 2-fixed/2-swivel tracks straighter over long distances.
Who Uses the Raymond Panel Mover?
Office facilities teams — Reconfiguring cubicle layouts and moving partition panels during renovations or reorganizations. The 2,400 lb. capacity handles the heaviest modular wall systems.
Hotels & convention centers — Moving banquet tables, room dividers, and staging equipment between ballrooms and storage. Vinyl coating protects finished surfaces.

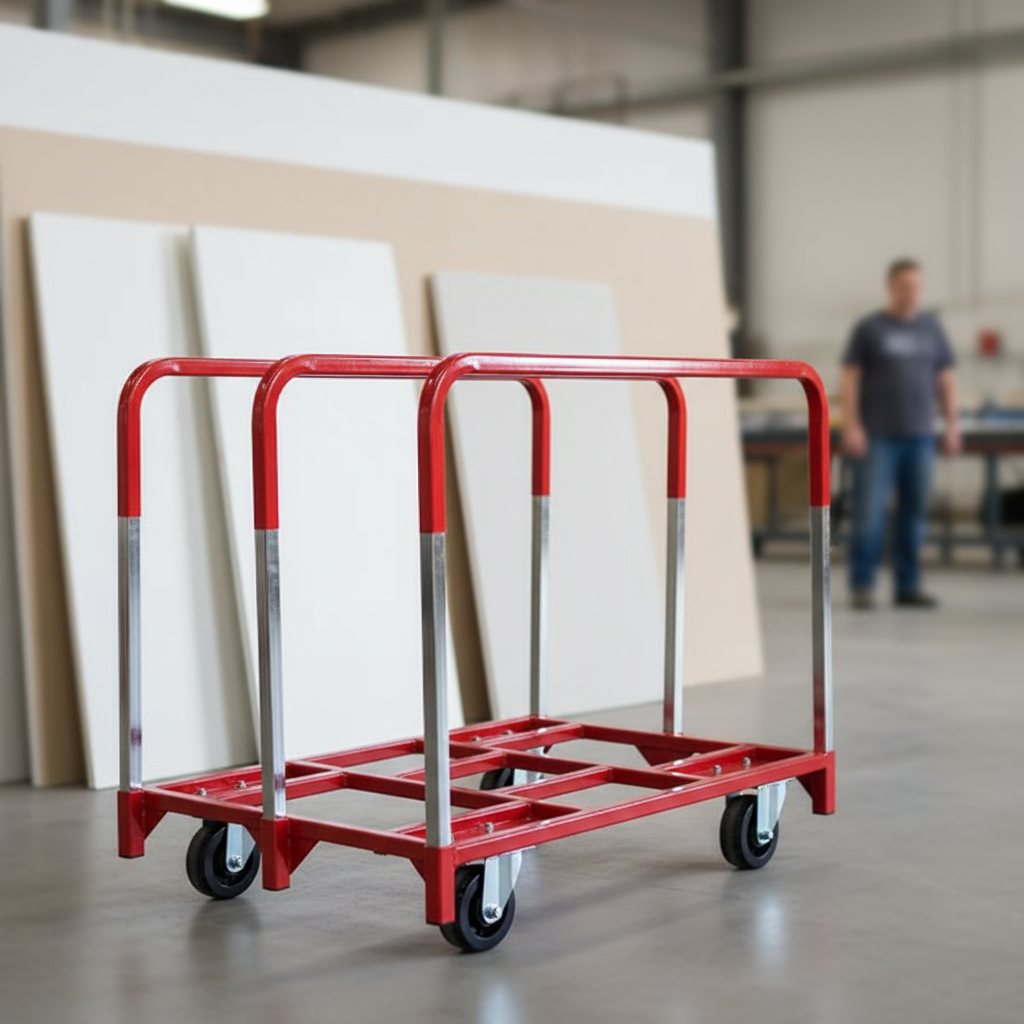

Manufacturing & workrooms — Transporting raw materials, sheet goods, and work-in-progress between stations. The flat platform with removable uprights adapts to any load shape.
Moving companies — Loading mattresses, bed frames, and furniture. The non-mar finish prevents damage to cargo and customer floors.
Schools & universities — Moving folding tables, room dividers, and stage equipment for events and assemblies.
Frequently Asked Questions
Can I remove the uprights?

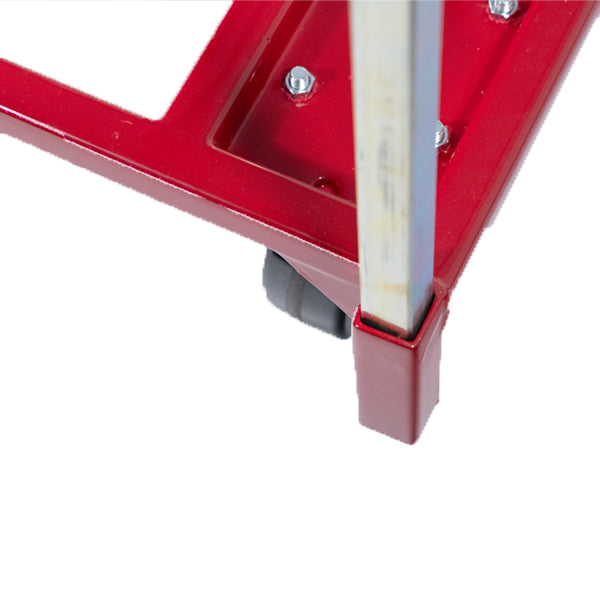

Yes. All three uprights lift out of their sockets, giving you a flat platform for oversized or irregular loads. Uprights store compactly when not in use.
What’s the difference between phenolic and quiet poly casters?
Phenolic casters are harder and roll best on smooth concrete or industrial floors. Quiet Poly casters absorb vibration, reduce noise, and are gentler on polished surfaces like tile, wood, and finished concrete. Choose Quiet Poly for noise-sensitive environments like offices and hotels.
Do I need the brake option?
If your facility has any inclines—loading docks, ramps, or sloped floors—brake kits are recommended. They’re also useful for holding the mover stationary during loading and unloading.
How does this compare to the Extra Tall Upright version?
The standard uprights stand 26" above the deck. If you regularly move tall panels, partitions, or room dividers over 5 feet tall, the Panel Mover with Extra Tall Uprights provides better support.
Will this fit through standard doorways?
Yes. At 27½" wide, the panel mover fits through any standard 32" or 36" doorway with room to spare.
