Item No. 3771 (Narrow Width)
|
|
Designed for moving round folding tables, this new design may also be used in many of the same applications as our original panel mover. Built in the USA with the high quality features of all Raymond products.
- Platform: Robotic welded 14 & 16 gauge tubular steel.
- Two removable uprights made of 14 gauge steel tubing, 48" long x 43 1/2" high. Uprights extend 40" above platform.
- Finish: Platform and uprights coated with non-mar, skid-resistant vinyl.
- Must ship by truck.
- Overall dimensions: 24" x 48."• Load area: 22" x 46."
- Load capacity: 1,600 lbs. Casters: 5" x 2", Phenolic, 2 fixed, 2 swivel. Removable uprights: 2 Packed: two cartons. Shipping weight: 92. Must ship by truck
Item No. 3773 (Narrow Width + Swivel)
|
|
- Same as 3771 but all four casters swivel: Shipping weight: 95

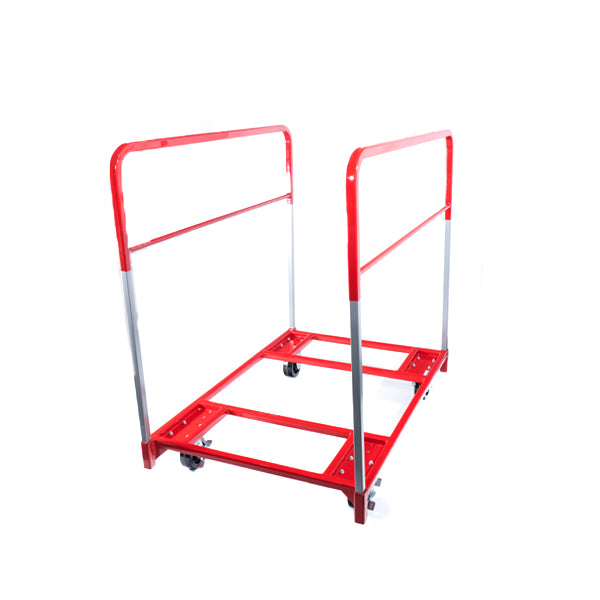

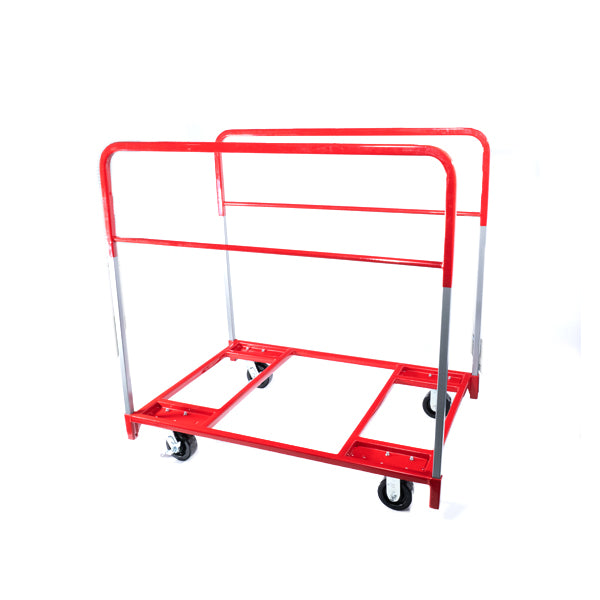

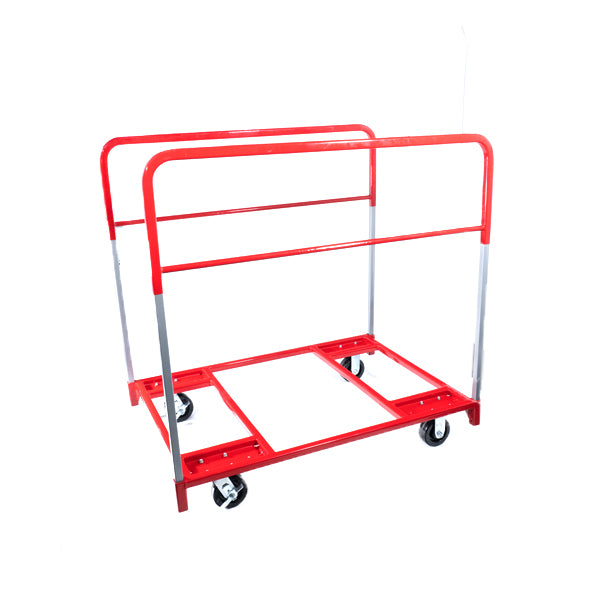

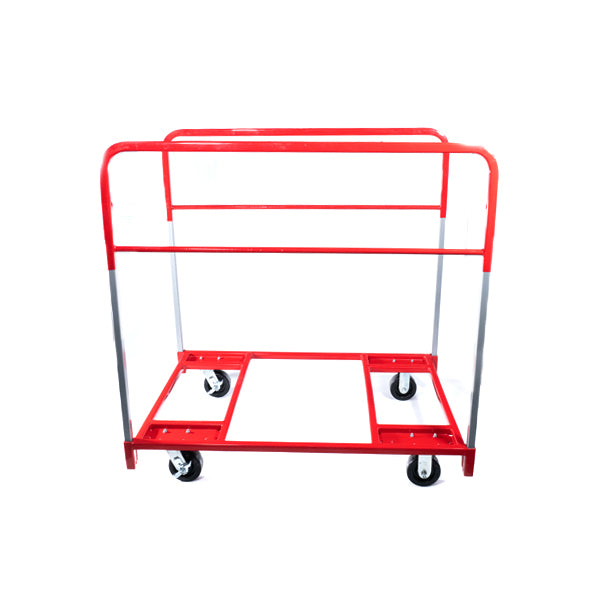

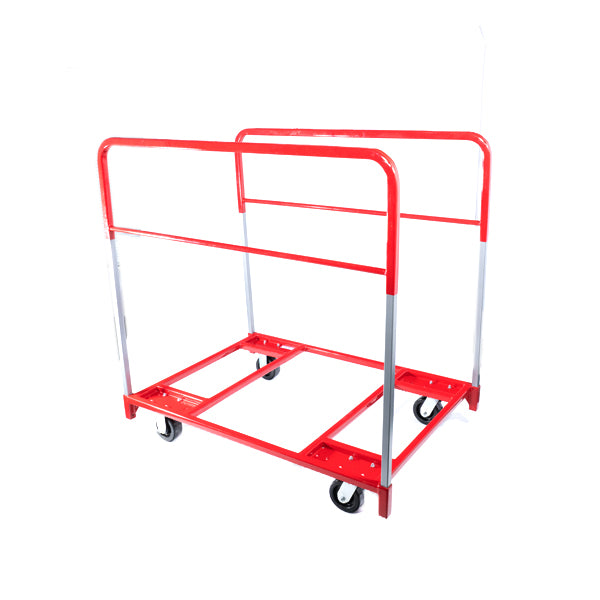

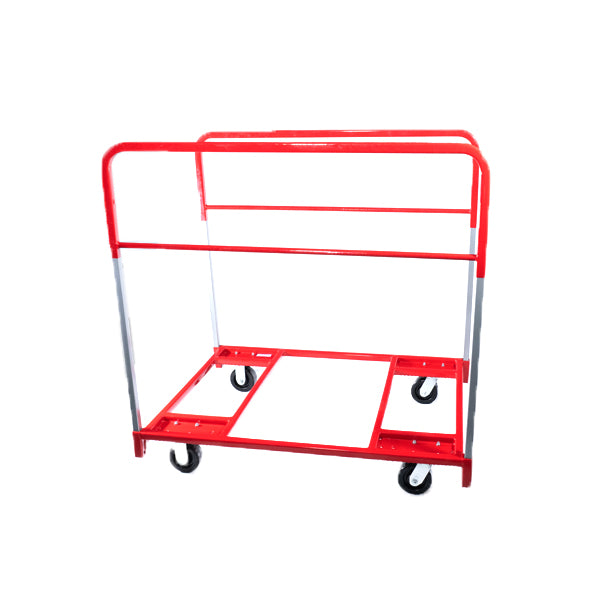

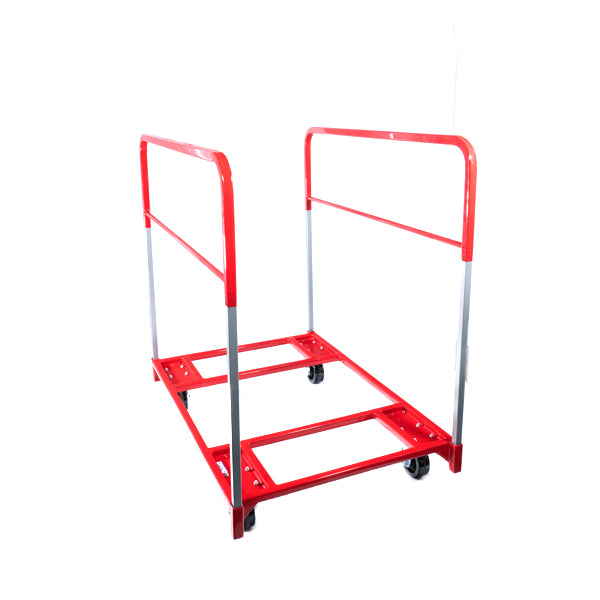

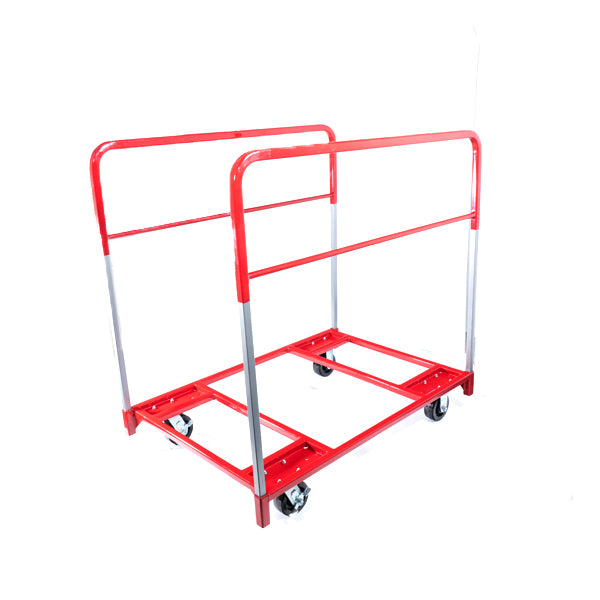

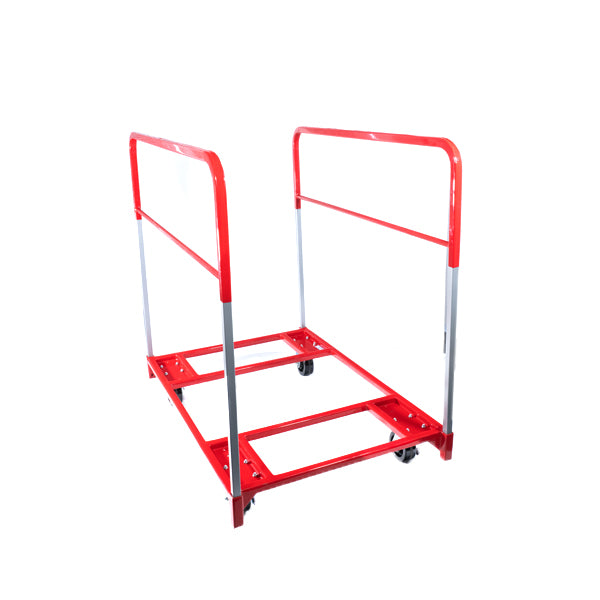

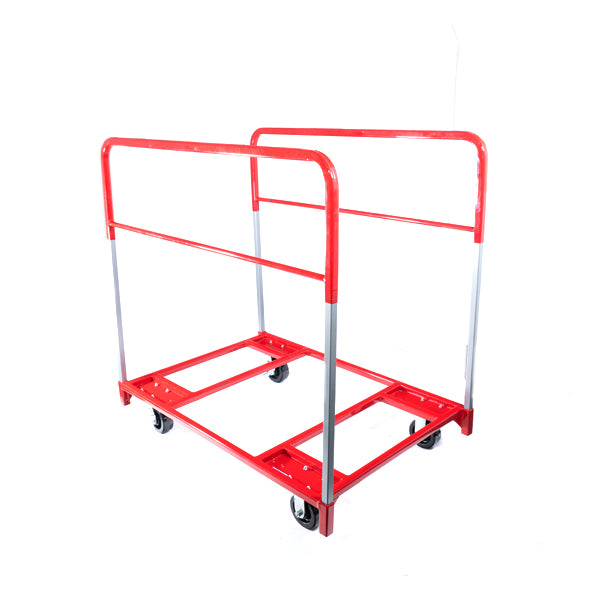

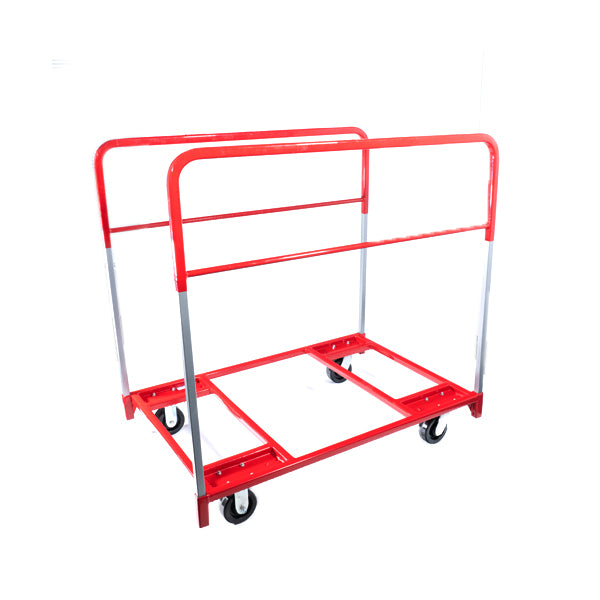

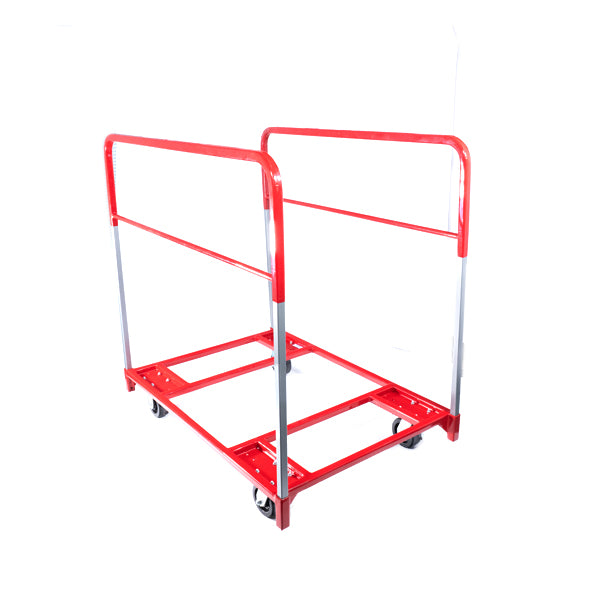

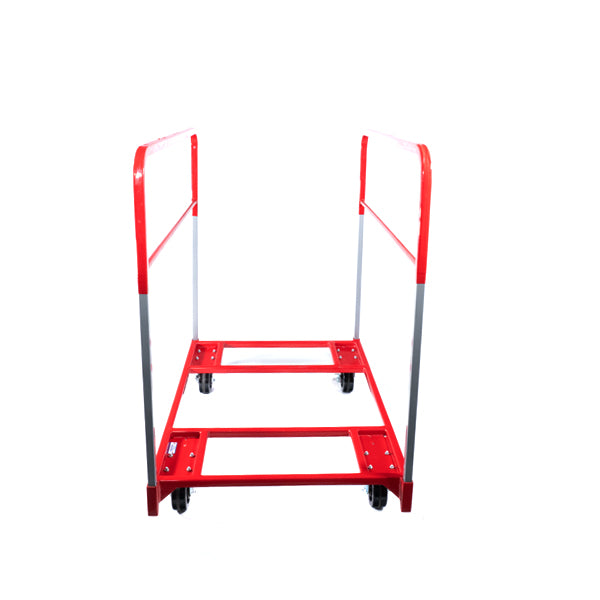

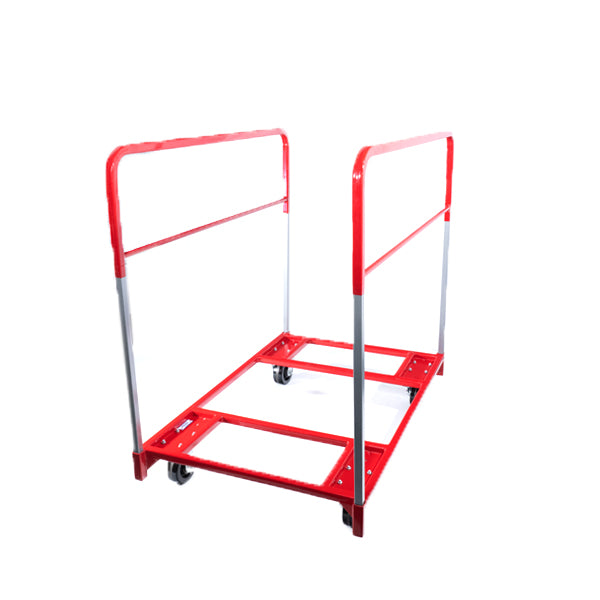

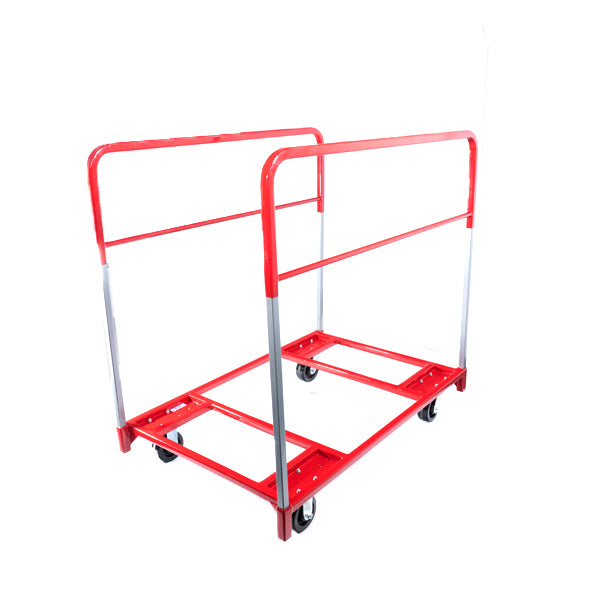

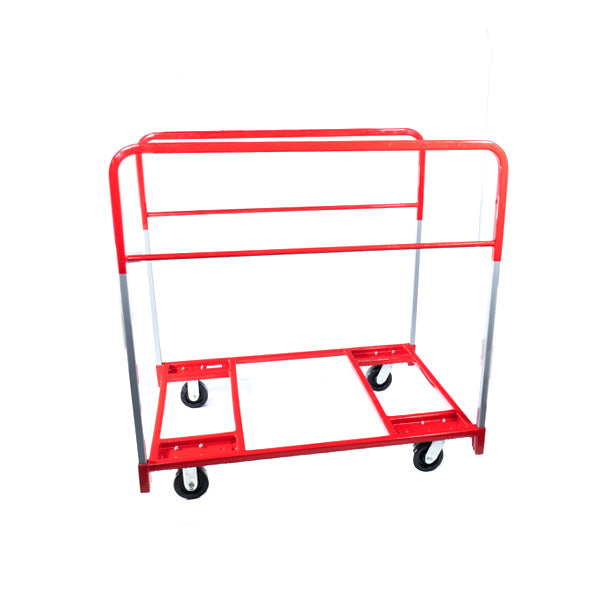

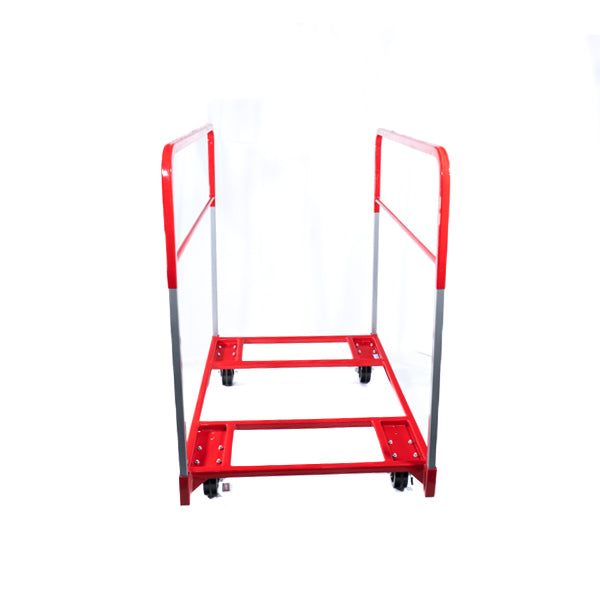

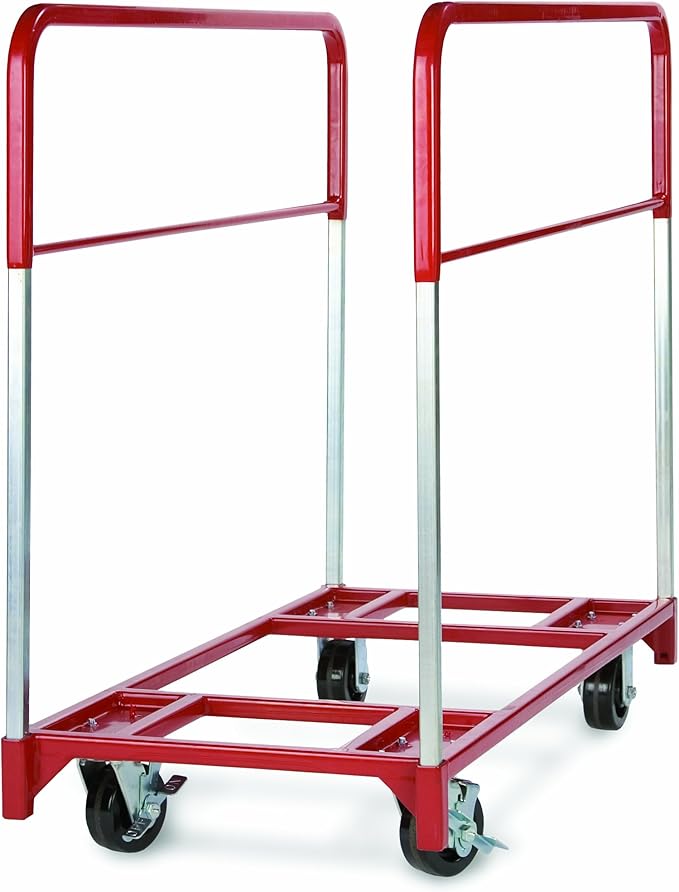

Item No. 3701 (Standard Width w/ 5" Casters)
|
|
- Overall dimensions: 32 3/4" x 48."
- Load area: 30" x 48."
- Load capacity: 1,600 lbs. Casters: 5" x 2", Phenolic, 2 fixed, 2 swivel. Removable uprights: 2 Packed: two cartons. Shipping weight: 94. Must ship by truck.
Item No. 3708 (Standard Width w/ 5" Casters + Swivel)
|
|
- Same as 3708 but all four casters swivel: Shipping weight: 97

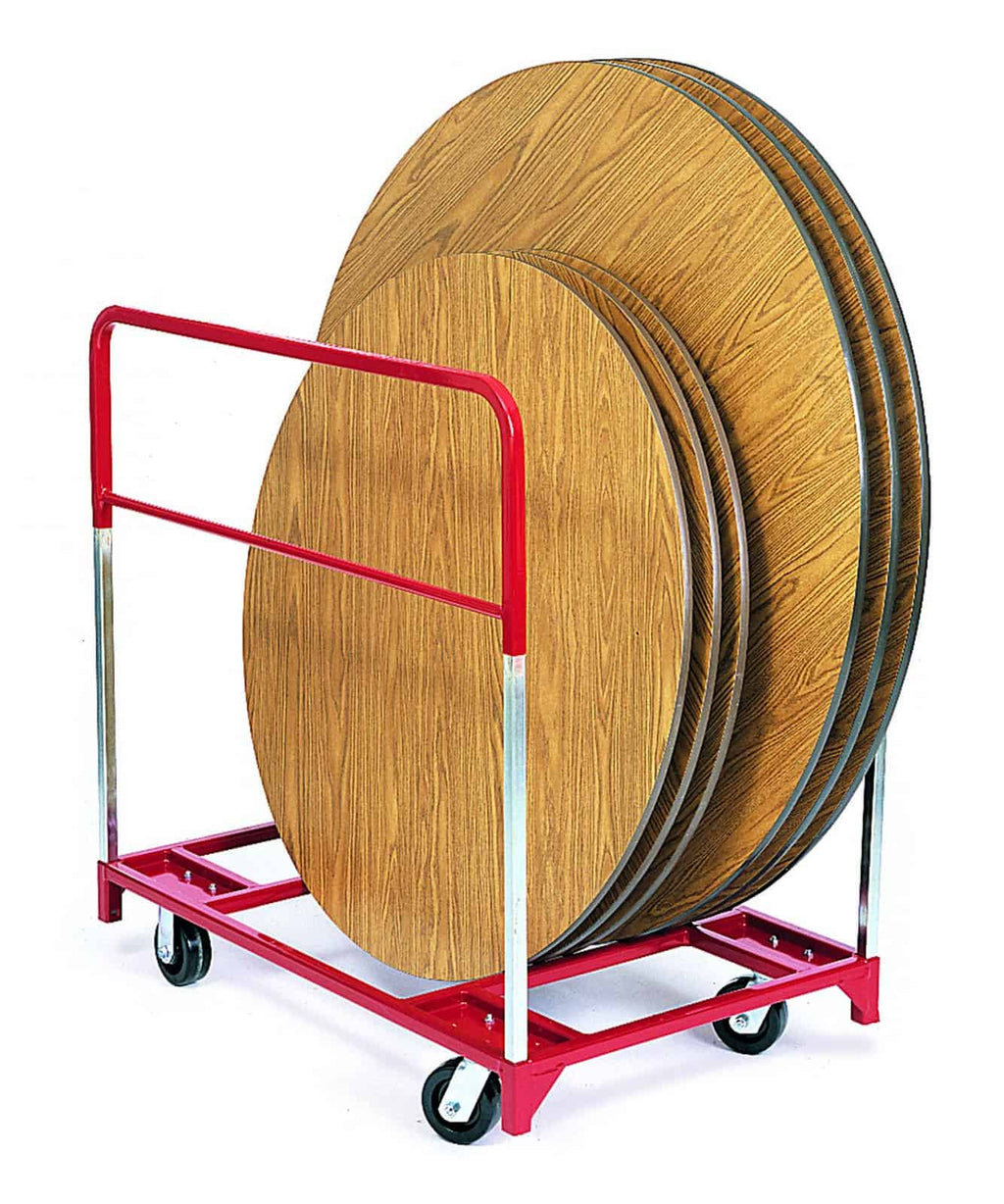

Item No. 3702 (Standard Width w/ 6" Casters)
|
|
- Casters: 6" x 2", Phenolic, 2 fixed, 2 swivel: Shipping weight: 96
Item No. 3709 (Standard Width w/ 6" Casters + Swivel)
|
|
- Same as 3702 but all four casters swivel: Shipping weight: 100

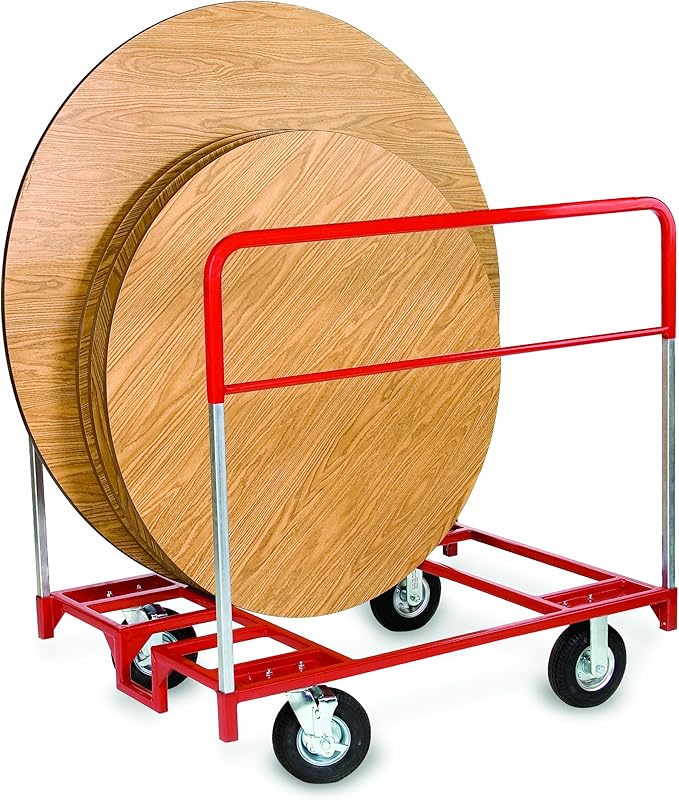

Item No. 3751 (Extra Wide w/8" Air Free Wheels)
|
|
An updated design and air free casters make our new model ideal for outdoor use. The pneumatic rubber 8" casters ease the chore of transporting tables over rougher surfaces including patios, decks, pavers and cobblestones. The unique “step assist” feature allows tables to be rolled onto the load area with ease. Extra wide will not fit through standard door openings
- Overall dimensions: 36" x 48."
- Load area: 34" x 46."
- Load capacity: 1,000 lbs. Step assist allows for easy loading. Casters: 8" x 2.8", Air Free #3751, 2 fixed, 2 swivel. Removable uprights: 2 Packed: two cartons. Shipping weight: 110. Must ship by truck.
Item No. 3753 (Extra Wide w/8" Air Free Wheels + Swivel)
|
|
- Same as 3751 but casters all swivel. Shipping weight: 113
